OPNsense Firewall Deployment

This page documents the hardware modification, installation, and configuration of the core network firewall and router using OPNsense.

1. Hardware & Modifications

The firewall runs on a modified Dell Optiplex 7050 Micro. Because micro-form-factor PCs typically lack PCIe expansion slots, hardware modifications were necessary to add the required network interfaces.

  • Network Expansion: Used an M.2 to PCIe adapter to connect an additional network card I had on hand. I carefully cut a slot in the back chassis to accommodate the new ports.
  • Storage / Redundancy: Installed two SSDs configured in a ZFS Mirror during the OPNsense installation process to ensure high availability and protect against drive failure.

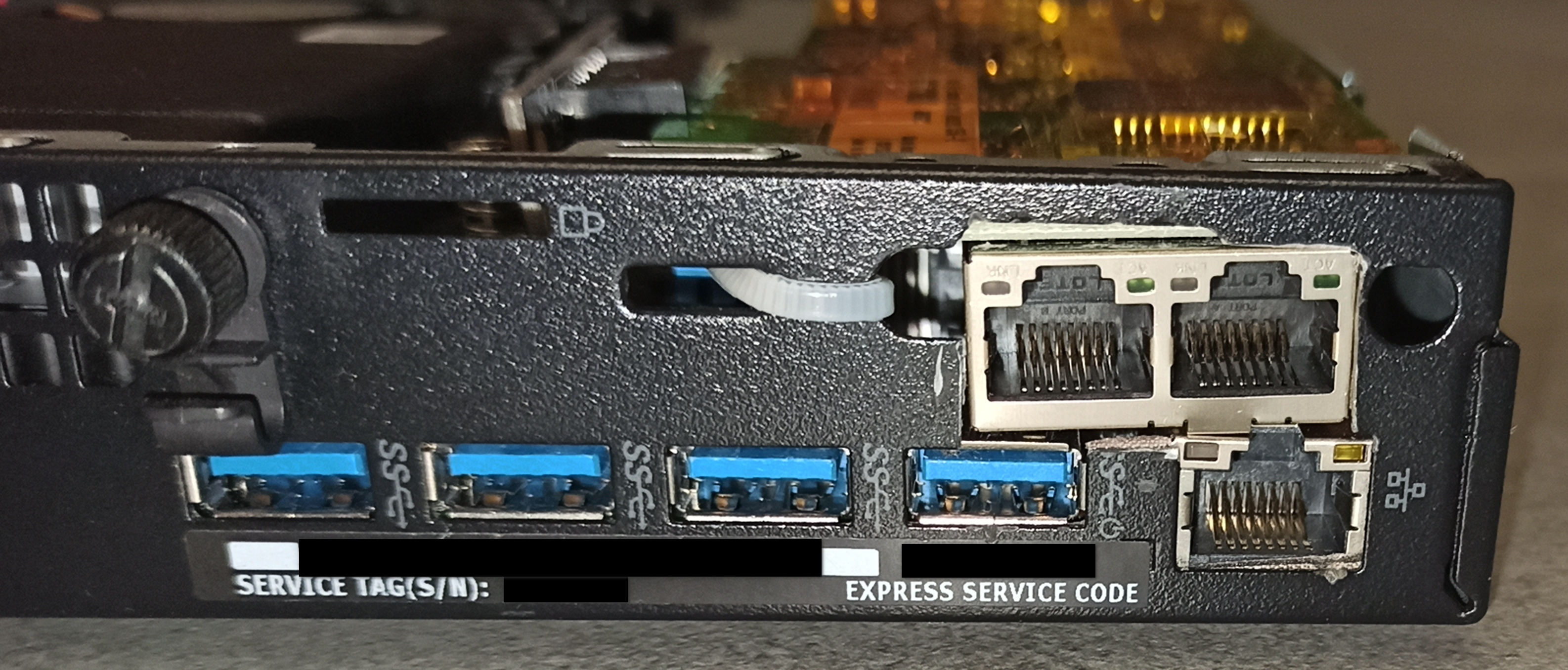

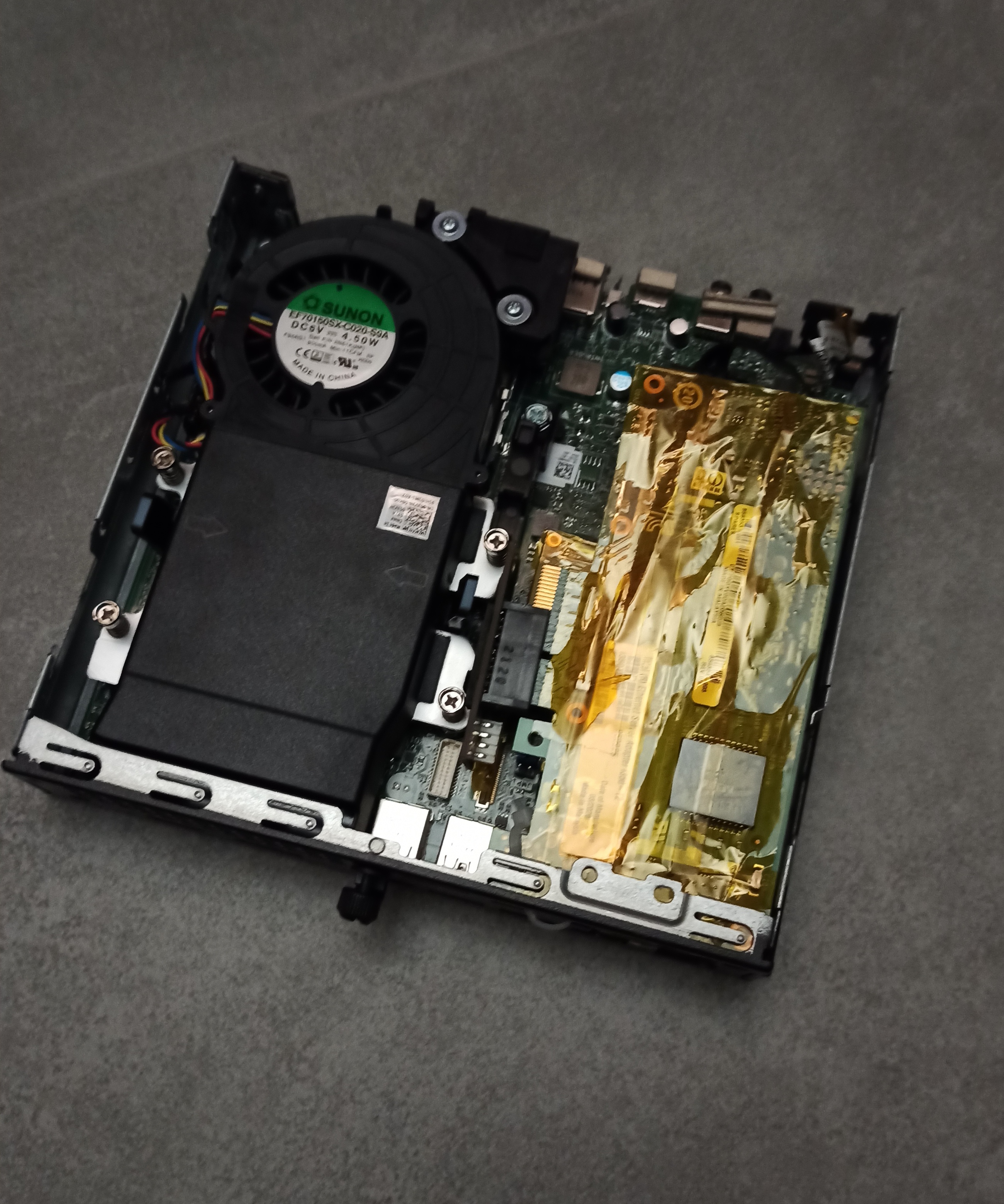

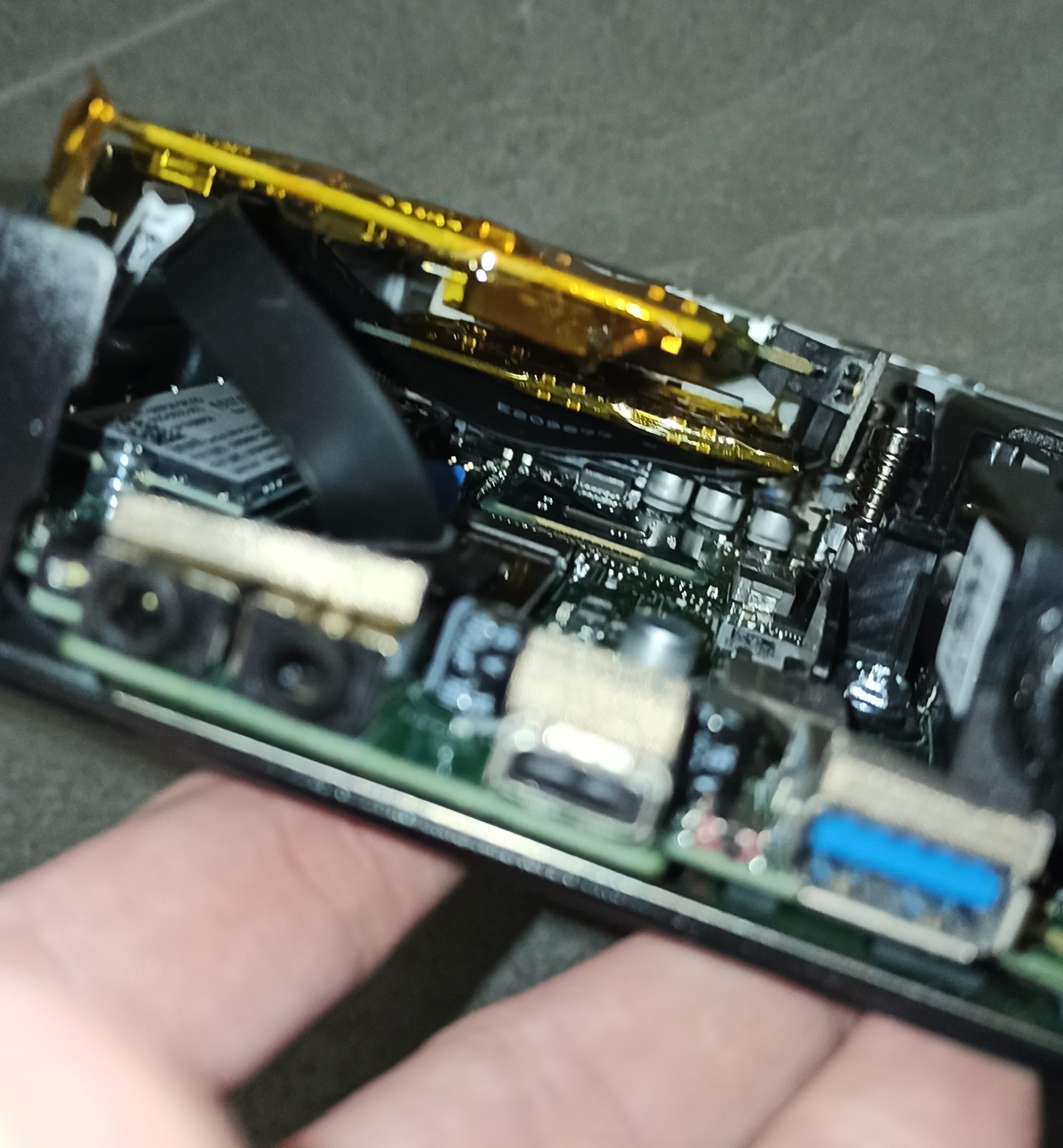

Modification Gallery: opnsense_top opnsense_internal opnsense_ports

2. Network Interfaces & LAGG

The system has a total of three 1Gbps network interfaces. To maximize bandwidth and provide redundancy to the core switch, the LAN side is configured using Link Aggregation (LAGG).

  • WAN: 1x 1Gbps Interface
  • LAN: 2x 1Gbps Interfaces bonded in a LAGG

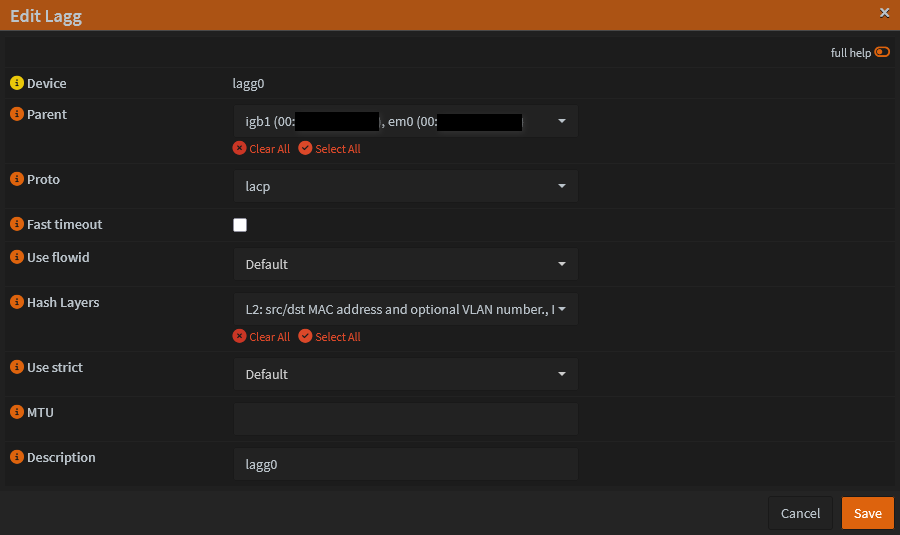

LAGG Configuration

The LAGG is configured using LACP to connect to the core managed switch.

  • Selected Interfaces: igb0, em0
  • Protocol: LACP
  • Hash Layers: L2 and L3

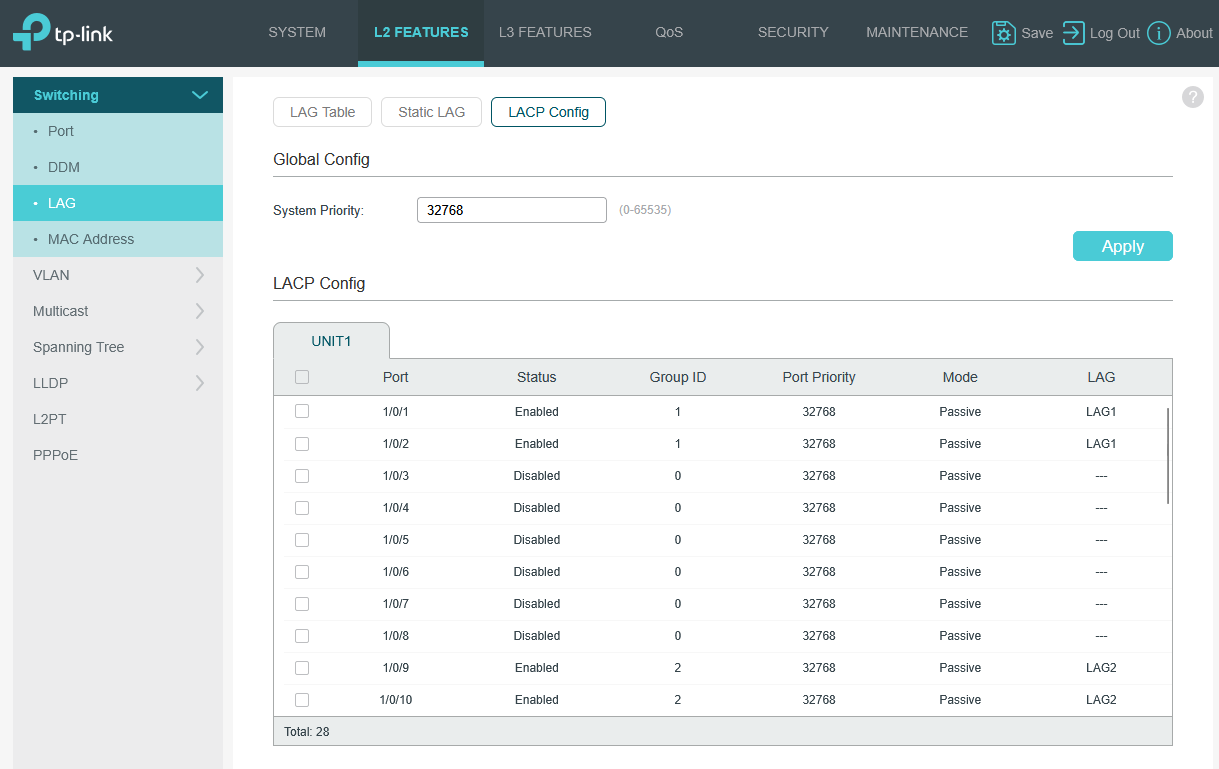

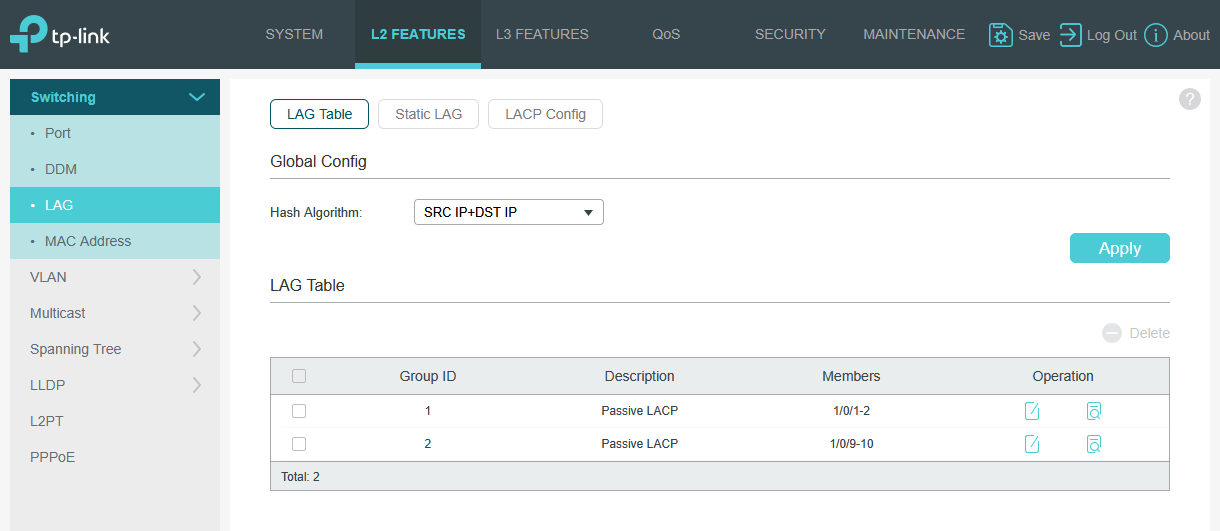

opnsense_lagg opnsense_lagg2 opnsense_lagg3

3. VLAN Segmentation

To ensure security and isolate broadcast traffic, the network is segmented into the following VLANs, all routed through OPNsense:

  • Trusted Devices: Primary network for personal PCs.
  • Main WiFi: Standard wireless access.
  • IoT (Internet of Things): Isolated network for smart home devices.
  • CCTV: Completely locked-down network for IP cameras.
  • DMZ: Demilitarized zone for externally exposed services (e.g., Netbird container).

4. DNS & DHCP Configuration

Primary DNS (AdGuard Home)

To manage network-wide ad blocking, tracking protection, and custom DNS filtering, the os-adguardhome-maxit plugin is utilized. AdGuard Home serves as the primary, authoritative DNS server for all VLANs.

AdGuard Home

For detailed configuration, blocklists, and DNS routing rules, refer to the AdGuard Home documentation page.

Automated Service Recovery (Monit Watchdog)

The built-in Monit monitoring engine is configured to watch the AdGuard Home process. If AdGuard crashes or stops unexpectedly, Monit will automatically catch the failure and trigger a restart.

Step 1: Create a Service Test

Define the specific condition that Monit will evaluate to identify a service failure.

  1. Navigate to Services > Monit > Settings.
  2. Select the Service Test Settings tab.
  3. Click the + (Add) button and configure the following parameters:
  4. Name: AdGuard_Stopped
  5. Condition: does not exist
  6. Action: Restart
Step 2: Configure the AdGuard Process Monitor

Link the newly created test condition directly to the binary execution paths of AdGuard Home.

  1. Change to the Service Settings tab.
  2. Click the + (Add) button and apply the following service definitions:
  3. Enable service checks: [X] (Checked)
  4. Name: AdGuardHome
  5. Type: Process
  6. PID File: /var/run/adguardhome.pid
  7. Start command: /usr/local/etc/rc.d/adguardhome start
  8. Stop command: /usr/local/etc/rc.d/adguardhome stop
  9. Tests: Select AdGuard_Stopped from the drop-down list.
Step 3: Enable and Apply Monit Engine

Enforce the new automation rules globally inside the firewall.

  1. Switch to the General Settings tab.
  2. Check the box for Enable Monit (if not already enabled).
  3. Polling Interval: The default is 120 seconds. You can safely lower this to 60 seconds if you prefer a faster service recovery time.

DHCP Server (Dnsmasq)

For IP address assignment and management across the various VLANs, OPNsense is configured to use Dnsmasq as the DHCP server. It handles standard dynamic IP leases for client devices, as well as serving static IP mappings for core homelab infrastructure and servers.

5. Firewall Rules & Port Forwarding

Netbird DMZ Port Forwarding

To route external traffic to the Netbird server located in the DMZ, specific ports are forwarded. To keep the configuration clean, an Alias was created containing all required Netbird ports, which is then applied to a single NAT Port Forward rule.

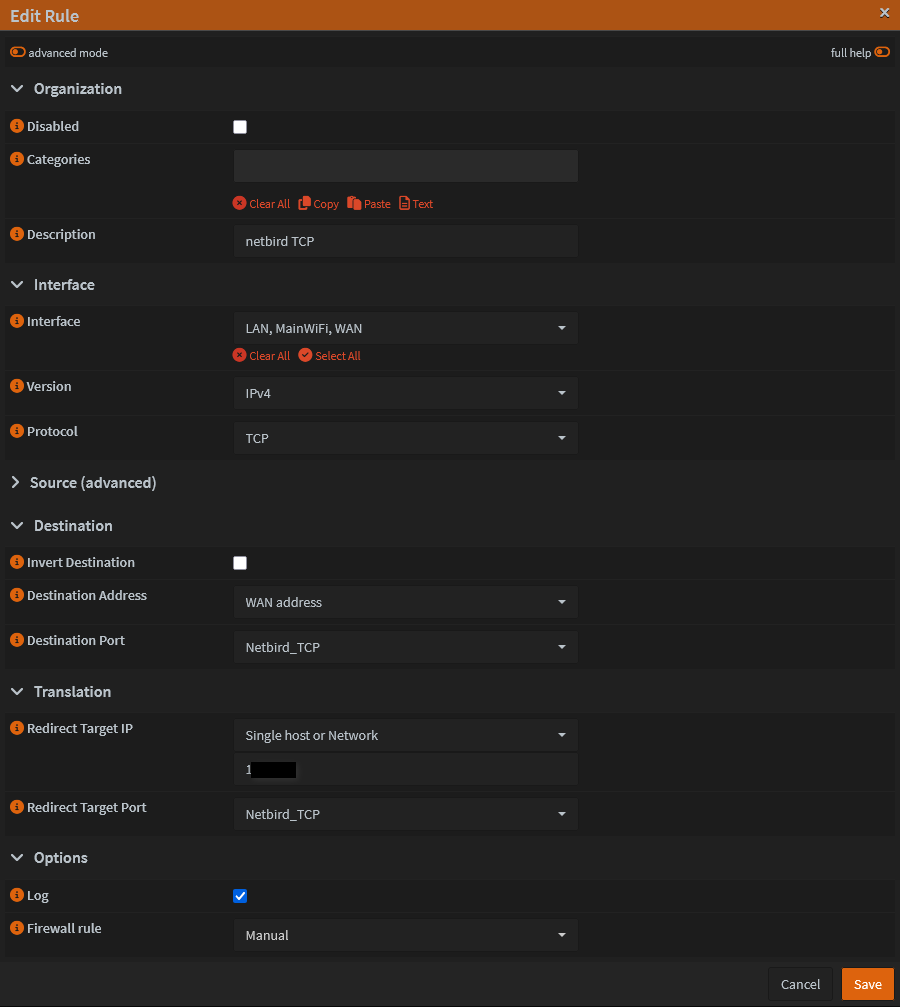

Example rule: opnsense_port_forward

NAT Reflection

NAT Reflection is enabled globally. This allows internal devices on the LAN to access internally hosted services using their external public IP/Domain name seamlessly without leaving the local network.

IoT VLAN Rules Example

The IoT network is strictly controlled to prevent compromised smart devices from pivoting into the trusted network.

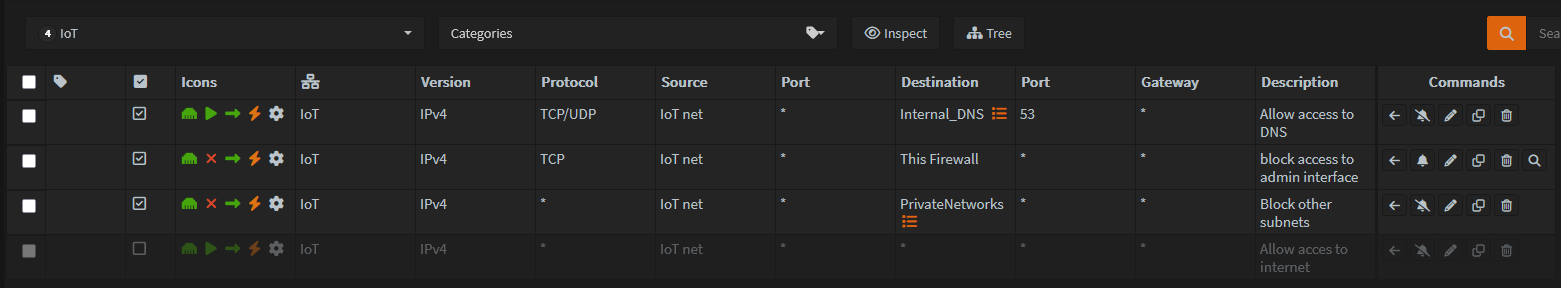

IoT Rule Order:

  1. Allow DNS: Permit traffic to the local DNS server.
  2. Block Access to Firewall: Prevent access to the OPNsense web GUI and SSH.
  3. Block Inter-VLAN Routing: Prevent access to all other local subnets (Trusted, Management, etc.).
  4. Internet Access: The default "Allow All" internet rule is strictly disabled (or conditionally enabled only for specific devices that require cloud access).

oopnsense_iot_rules

6. Services & Plugins

The following official and community plugins are installed to extend the firewall's capabilities:

  • os-adguardhome-maxit (DNS filtering and ad-blocking)
  • os-crowdsec (Collaborative IPS/threat defense)
  • os-ddclient (Dynamic DNS updating)
  • os-dmidecode (Hardware info reporting)
  • os-gdrive-backup (Automated cloud backups)
  • os-mdns-repeater (Multicast DNS across subnets)
  • os-vnstat (Bandwidth monitoring)
  • os-wol (Wake-on-LAN functionality)
  • os-smart (SSD/HDD health monitoring)

Service Highlights

CrowdSec Intrusion Prevention (IPS)

The os-crowdsec plugin provides a collaborative, community-driven Intrusion Prevention System. It actively monitors OPNsense logs and leverages the CrowdSec network to automatically identify and drop malicious traffic. The integrated Firewall Bouncer is configured to block known malicious IPs attempting to scan, probe, or brute-force the WAN interface and exposed DMZ services.

Dynamic DNS (Cloudflare)

os-ddclient is configured to automatically update the public IP address via the Cloudflare API whenever the ISP changes the WAN IP, ensuring external services remain reachable.

mDNS Repeater

Configured to listen across the Main WiFi and IoT networks. This allows trusted devices (like phones) to discover and control IoT devices (like Chromecasts or smart speakers) seamlessly across VLAN boundaries.

Automated Cloud Backups

To protect the complex firewall configuration, the os-gdrive-backup plugin is configured. OPNsense automatically encrypts and uploads its configuration XML to a secure Google Drive folder on a scheduled basis.

UDP Broadcast Relay (LocalSend across VLANs)

By default, UDP broadcast traffic—which apps like LocalSend rely on to discover peers on the local network—cannot cross VLAN boundaries. To solve this, the UDP Broadcast Relay service is configured to listen for and forward these specific packets between subnets.

Plugin Required

Ensure you have installed the os-udpbroadcastrelay plugin from System > Firmware > Plugins before proceeding.

Navigate to Services > UDP Broadcast Relay and click the + (Add) button to create a new relay instance for LocalSend:

  • Relay Port: 53317 (The default discovery port for LocalSend)
  • Relay Interfaces: Select the VLANs you want to bridge (e.g., Trusted and Main WiFi)
  • Broadcast Address: 224.0.0.167 (The multicast group address used by LocalSend)
  • Source Address: 1.1.1.1
  • Instance ID: 1
  • Description: LocalSendBroadcast

7. Remote Access & VPNs

To ensure reliable and redundant access to my homelab from the outside world, I maintain two separate VPN services. My primary mesh VPN is Netbird, but I also run a traditional OpenVPN server directly on the OPNsense firewall as a robust, router-level fallback.

Netbird

For detailed configuration, refer to the Netbird documentation page.

OpenVPN (OPNsense Failover)

While Netbird handles my primary peer-to-peer routing and is hosted in the DMZ, OpenVPN serves as my "break-glass" remote access method. Because it runs directly on the core OPNsense hardware, it guarantees I can still securely access my management interfaces to troubleshoot the network even if the Netbird container, Proxmox host, or DMZ VLAN goes offline.

1. Certificate Authority & Keys

Before setting up the server, the cryptographic trust chain was established in OPNsense under System > Trust > Certificates.

  • Generated a new internal Certificate Authority (CA).
  • Generated a new Server Certificate signed by the CA.
  • Key Parameters: RSA 2048-bit, SHA-256 Hash Algorithm.

2. OpenVPN Server Configuration

The core server was configured under VPN > OpenVPN > Instances using the following parameters:

  • Protocol: UDP
  • Local Port: 1194
  • Device Mode: TUN
  • Cryptography: Attached the previously generated server certificate and enabled strict certificate verification.
  • Network Settings: Assigned a dedicated VPN tunnel subnet and pushed the local DNS servers (AdGuard Home) to connected clients so local hostnames resolve correctly over the tunnel.

3. Firewall Rules for OpenVPN

To allow the VPN to function, two sets of firewall rules were created:

  1. WAN Interface: Created a rule allowing incoming UDP traffic on port 1194 to permit clients to initiate the connection to the firewall from the outside.
  2. OpenVPN Interface: Created rules to allow traffic originating from the VPN tunnel to access the required local VLANs.

4. User Creation & Client Export

To grant access to specific devices:

  1. Navigated to System > Access > Users and created dedicated OPNsense user accounts.
  2. Generated a unique client certificate for each user during the account creation process.
  3. Utilized the Client Export utility to easily download the fully assembled .ovpn configuration profiles for deployment on laptops and mobile phones.

8. Connection Health Monitoring

To ensure OPNsense accurately tracks the uptime, latency, and packet loss of the internet connection, active gateway monitoring is configured. This allows the firewall to properly detect WAN failures and maintain accurate health logs.

Configuration Steps

  1. Navigate to System > Gateways > Configuration in the OPNsense menu.
  2. Click the edit (pencil) icon next to your primary WAN gateway (typically named WAN_DHCP).
  3. Disable Gateway Monitoring: Ensure this box is unchecked.
  4. Monitor IP: Enter a highly reliable public IP address (e.g., Cloudflare's 1.1.1.1).
  5. Click Save and then Apply Changes.

Why use a custom Monitor IP?

By default, OPNsense will ping your ISP's immediate upstream gateway. However, if your ISP's routing fails further downstream, the local gateway might still respond to pings, falsely reporting your connection as "Online." Pinging 1.1.1.1 guarantees that true external internet connectivity is being verified.
