Traefik Reverse Proxy with Cloudflare SSL

This guide covers setting up Traefik v3 as a reverse proxy in a Docker LXC Debian container. This deployment utilizes the Cloudflare DNS-01 challenge, allowing you to generate valid Let's Encrypt wildcard SSL certificates without exposing port 80 to the public internet.

Infrastructure Note

This setup is deployed on a standard Debian LXC container running Docker, cloned from a base template.

Prerequisites

  • A registered domain name.
  • Domain DNS managed by Cloudflare.

1. Prepare Cloudflare API Token

Traefik needs to communicate with Cloudflare to verify domain ownership. We need to generate a scoped API token for this.

  1. Log in to Cloudflare and navigate to My Profile > API Tokens.

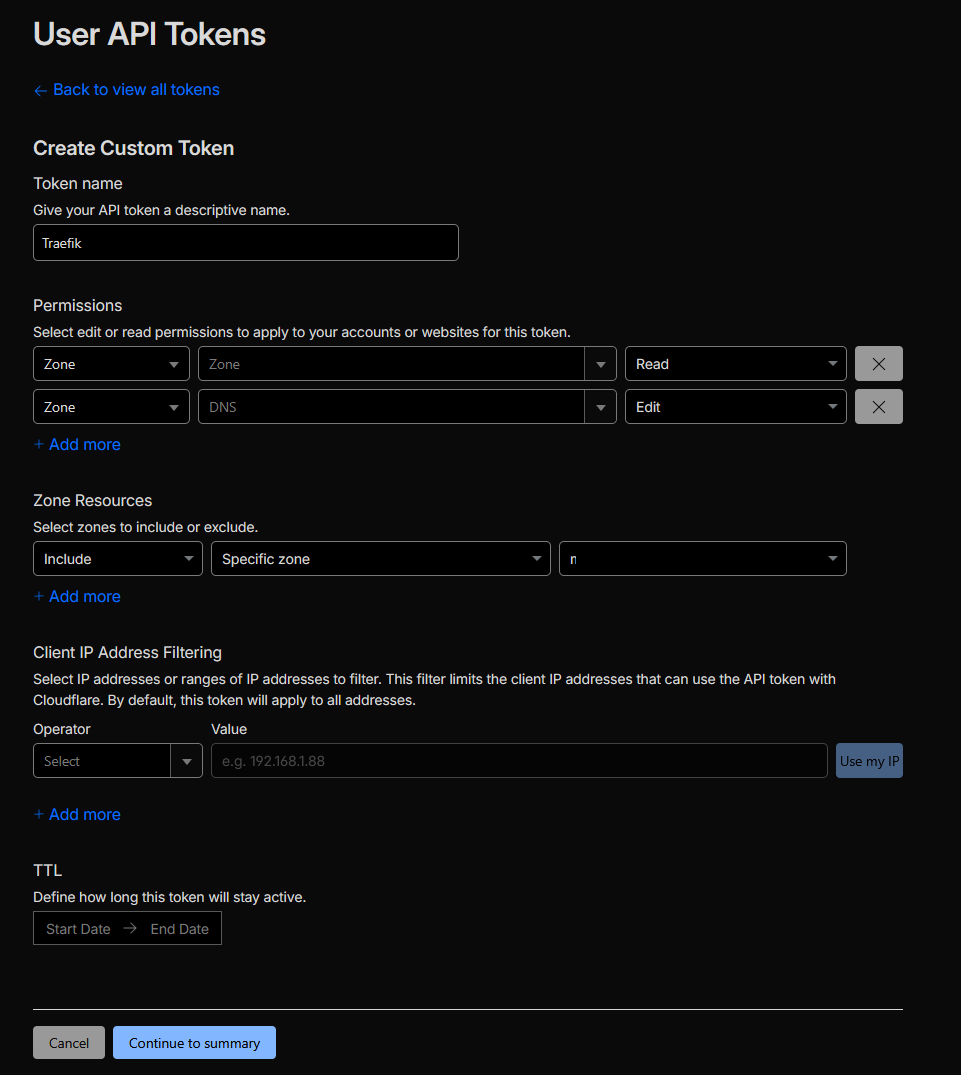

  2. Create a new Custom Token with the necessary DNS edit permissions: cloudflare_api

Secure Your Token

Once generated, copy your API key into a secure password manager immediately. Cloudflare will only display this token once.

2. System Preparation & Secrets

First, install the necessary utilities, create the Docker network, and set up the directory structure.

Install Apache Utils (Required for password generation):

sudo apt update
sudo apt install apache2-utils -y

Create the Docker Network: Traefik needs an external Docker network to route traffic to other containers.

docker network create proxy

Set up Directories and Secrets:

mkdir -p traefik/data
cd traefik

# Save your Cloudflare API token
nano cf_api_token.txt
# (Paste your token, save, and exit)

3. Generate Dashboard Credentials

To secure the Traefik dashboard, we need to generate basic HTTP authentication credentials.

Replace <USERNAME> with your desired admin username and run the following command. It will prompt you for a password and format it correctly for Docker Compose:

echo $(htpasswd -nB <USERNAME>) | sed -e s/\\$/\\$\\$/g

Copy the output string. Now, create your environment variables file:

nano .env

Paste your generated credentials into the file like this:

.env
TRAEFIK_DASHBOARD_CREDENTIALS=your_generated_string_here

4. Traefik Configuration Files

Traefik relies on two main configuration files: a static config (traefik.yml) and a dynamic config (config.yml). We also need to create an empty, secured file for the SSL certificates.

SSL Certificate Storage

Create the acme.json file and lock down its permissions. Traefik will refuse to start if this file is too open.

touch data/acme.json
chmod 600 data/acme.json

Static Configuration

Create the traefik.yml file. Be sure to replace <YOUR_CLOUDFLARE_EMAIL> with your actual account email.

data/traefik.yml
api:
  dashboard: true
  disableDashboardAd: true
  debug: true

entryPoints:
  http:
    address: ":80"
    http:
      redirections:
        entryPoint:
          to: https
          scheme: https
  https:
    address: ":443"

serversTransport:
  insecureSkipVerify: true

providers:
  docker:
    endpoint: "unix:///var/run/docker.sock"
    exposedByDefault: false
  file:
    filename: /config.yml

certificatesResolvers:
  cloudflare:
    acme:
      email: <YOUR_CLOUDFLARE_EMAIL>
      storage: acme.json
      caServer: https://acme-v02.api.letsencrypt.org/directory # prod (default)
      # caServer: https://acme-staging-v02.api.letsencrypt.org/directory # test
      dnsChallenge:
        provider: cloudflare
        # disablePropagationCheck: true
        # delayBeforeCheck: 60s
        resolvers:
          - "1.1.1.1:53"
          - "1.0.0.1:53"

Dynamic Configuration (External Routes)

Create the config.yml file. This file defines external routes to services not running in Docker (e.g., TrueNAS, Proxmox GUI). To add more services later, just copy and paste the router/service blocks.

data/config.yml
http:
 #region routers
  routers:
    <NAME>:
      entryPoints:
        - "https"
      rule: "Host(`<SUBDOMAIN_NAME>.<YOUR_DOMAIN>`)"
      middlewares:
        - default-headers
        - https-redirectscheme
      tls: {}
      service: <SERVICE_NAME>
 #endregion

 #region services
  services:
    <SERVICE_NAME>:
      loadBalancer:
        servers:
          - url: "https://<IP_WITH_PORT>"
        passHostHeader: true
 #endregion

  middlewares:
    https-redirectscheme:
      redirectScheme:
        scheme: https
        permanent: true

    default-headers:
      headers:
        frameDeny: true              # set to false to enable embedding
        browserXssFilter: true
        contentTypeNosniff: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsPreload: true
        stsSeconds: 15552000
        customFrameOptionsValue: SAMEORIGIN     # set "ALLOW-FROM https://<BASE_URL>" to enable embedding
        customRequestHeaders:
          X-Forwarded-Proto: https

    default-whitelist:
      ipAllowList:
        sourceRange:
        - "10.0.0.0/8"
        - "192.168.0.0/16"
        - "172.16.0.0/12"

    secured:
      chain:
        middlewares:
        - default-whitelist
        - default-headers

5. Docker Compose Deployment

Finally, create the Docker Compose file to tie everything together. Remember to replace <YOUR_DOMAIN> with your actual domain name.

docker-compose.yaml
services:
  traefik:
    image: traefik:v3
    container_name: traefik
    restart: unless-stopped
    security_opt:
      - no-new-privileges:true
    networks:
      - proxy
    ports:
      - 80:80
      - 443:443
      # - 443:443/tcp # Uncomment if you want HTTP3
      # - 443:443/udp # Uncomment if you want HTTP3
    environment:
      CF_DNS_API_TOKEN_FILE: /run/secrets/cf_api_token
      TRAEFIK_DASHBOARD_CREDENTIALS: ${TRAEFIK_DASHBOARD_CREDENTIALS}
    secrets:
      - cf_api_token
    env_file: .env
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ./data/traefik.yml:/traefik.yml:ro
      - ./data/acme.json:/acme.json
      - ./data/config.yml:/config.yml:ro
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.traefik.entrypoints=http"
      - "traefik.http.routers.traefik.rule=Host(`traefik-dashboard.<YOUR_DOMAIN>`)"
      - "traefik.http.middlewares.traefik-auth.basicauth.users=${TRAEFIK_DASHBOARD_CREDENTIALS}"
      - "traefik.http.middlewares.traefik-https-redirect.redirectscheme.scheme=https"
      - "traefik.http.middlewares.sslheader.headers.customrequestheaders.X-Forwarded-Proto=https"
      - "traefik.http.routers.traefik.middlewares=traefik-https-redirect"
      - "traefik.http.routers.traefik-secure.entrypoints=https"
      - "traefik.http.routers.traefik-secure.rule=Host(`traefik-dashboard.<YOUR_DOMAIN>`)"
      - "traefik.http.routers.traefik-secure.middlewares=traefik-auth"
      - "traefik.http.routers.traefik-secure.tls=true"
      - "traefik.http.routers.traefik-secure.tls.certresolver=cloudflare"
      - "traefik.http.routers.traefik-secure.tls.domains[0].main=<YOUR_DOMAIN>"
      - "traefik.http.routers.traefik-secure.tls.domains[0].sans=*.<YOUR_DOMAIN>"
      - "traefik.http.routers.traefik-secure.service=api@internal"

secrets:
  cf_api_token:
    file: ./cf_api_token.txt

networks:
  proxy:
    external: true

6. Launch Traefik

Spin up the container in detached mode:

docker compose up -d

Next Step: DNS Records

Now that Traefik is running, log into your local DNS server (e.g., Pi-hole, AdGuard, or your router) and create a DNS rewrite to point traefik-dashboard.<YOUR_DOMAIN> and all future subdomains to the IP address of your Traefik LXC container.
